Pipe Notching kit 25/32/40/50mm Angle Cutting Jig for Metal Pipe Welding and fab

No need to wait weeks for your gear we make it in Australia.

Pipe Notching Kit – Precision Angle Cutting Jig for Metal Tube

Take the guesswork out of pipe and tube angle preparation. This Pipe Notching Kit is designed for accurately marking and cutting repeatable angles on round tube for welding, fabrication and structural projects.

Ideal for handrails, frames, roll cages, marine fabrication, custom brackets and general metalwork.

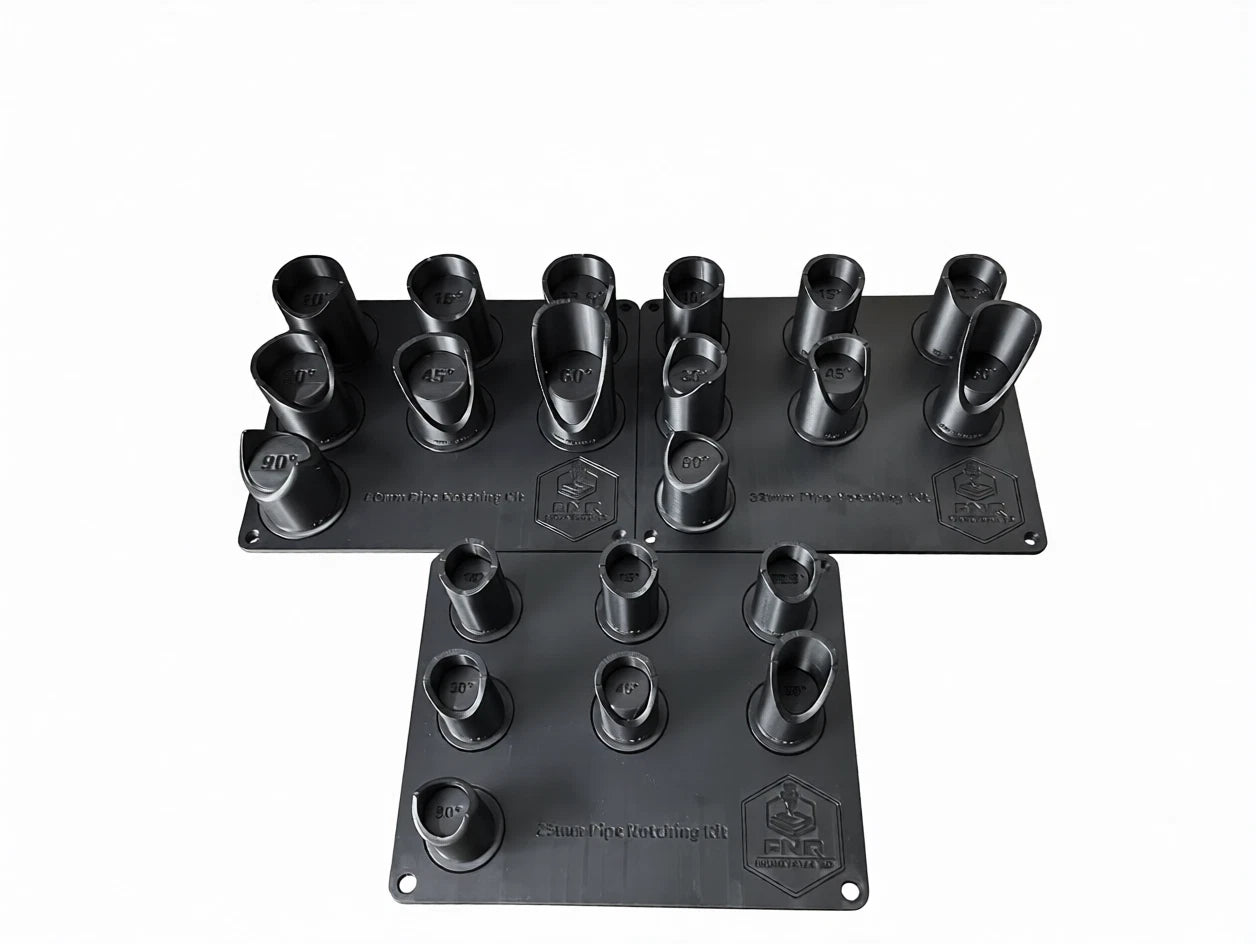

Each kit comes with its own mounting/storage plate to keep your tools organised and always ready to go.

Mounting plate comes ready to mount with four countersunk holes pre fabricated into the plate.

Available Sizes

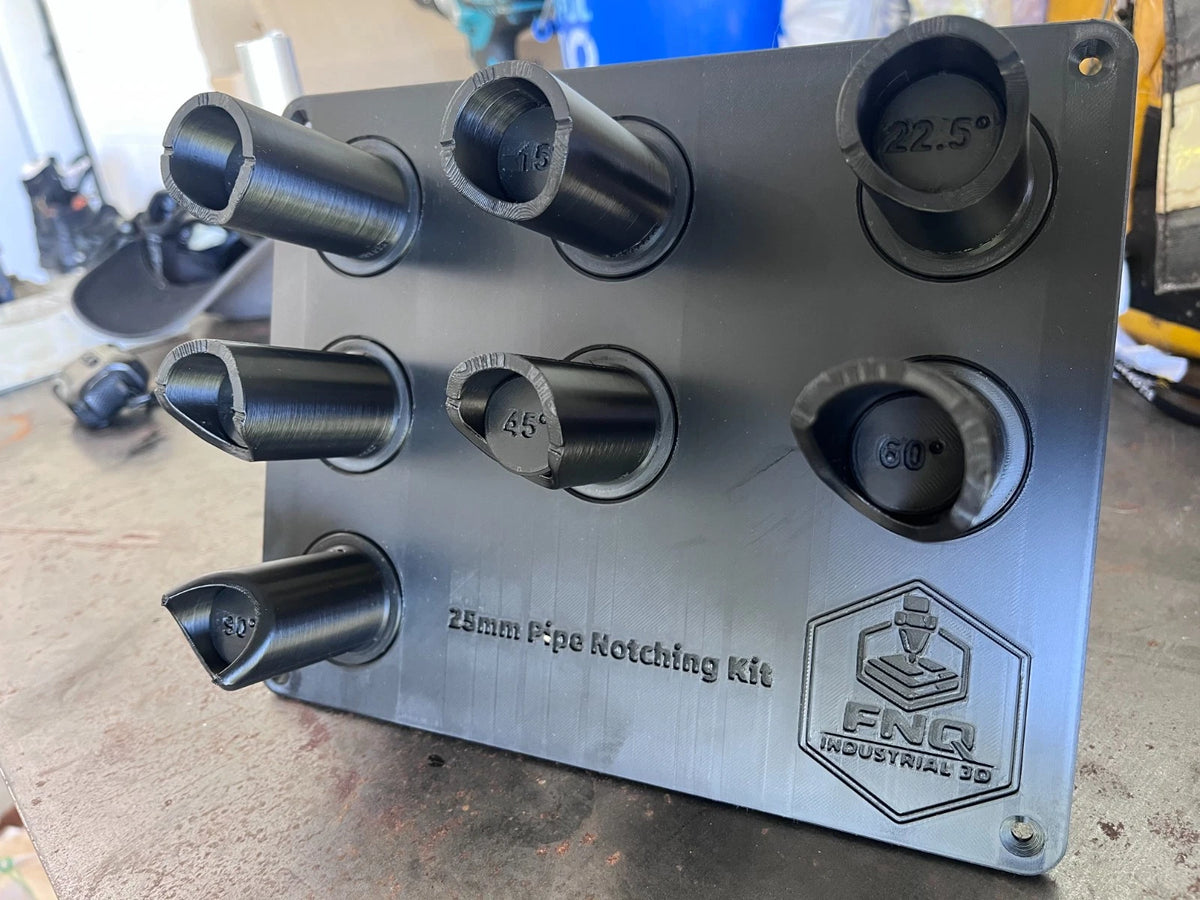

• 25mm Pipe Kit

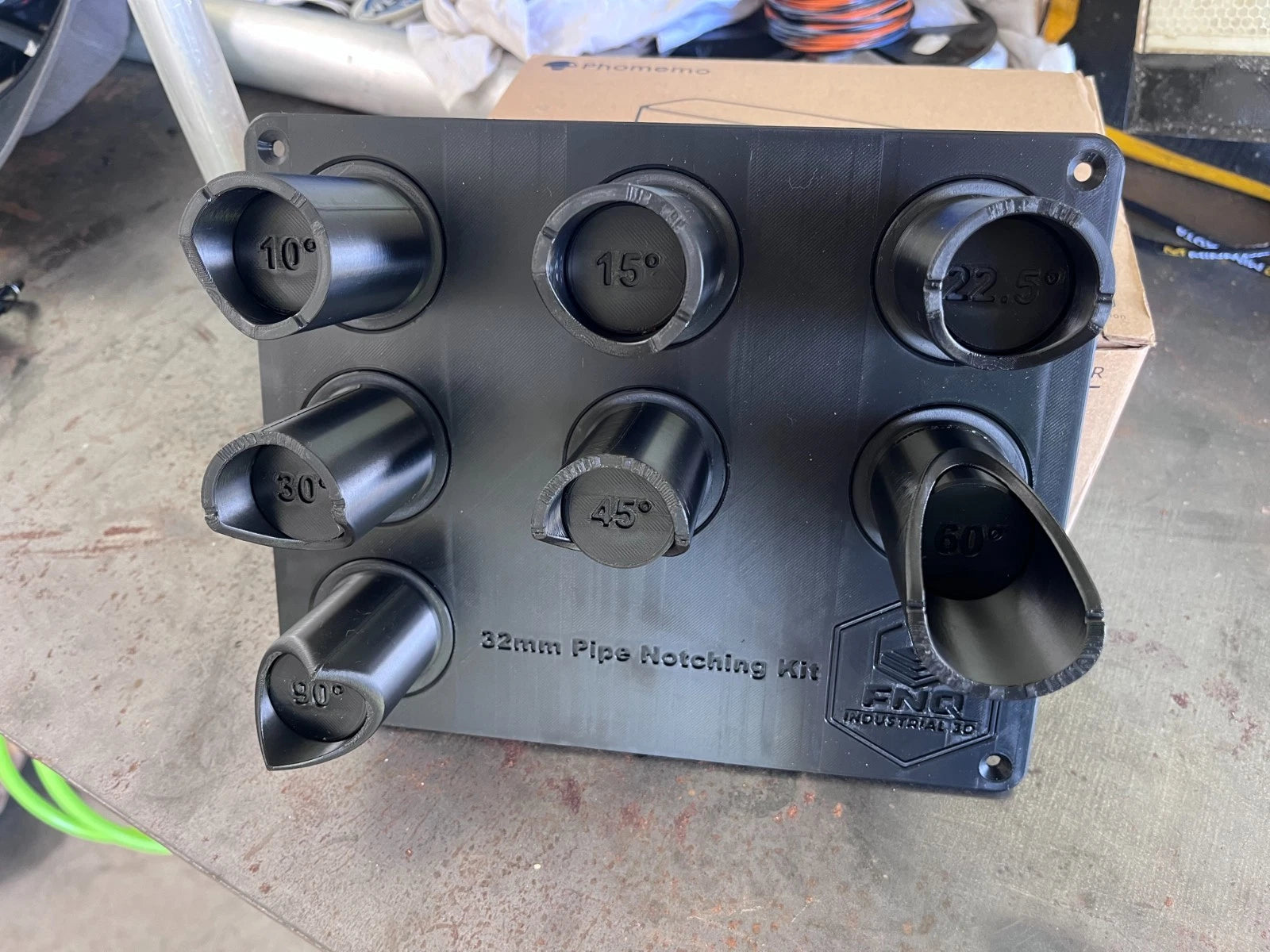

• 32mm Pipe Kit

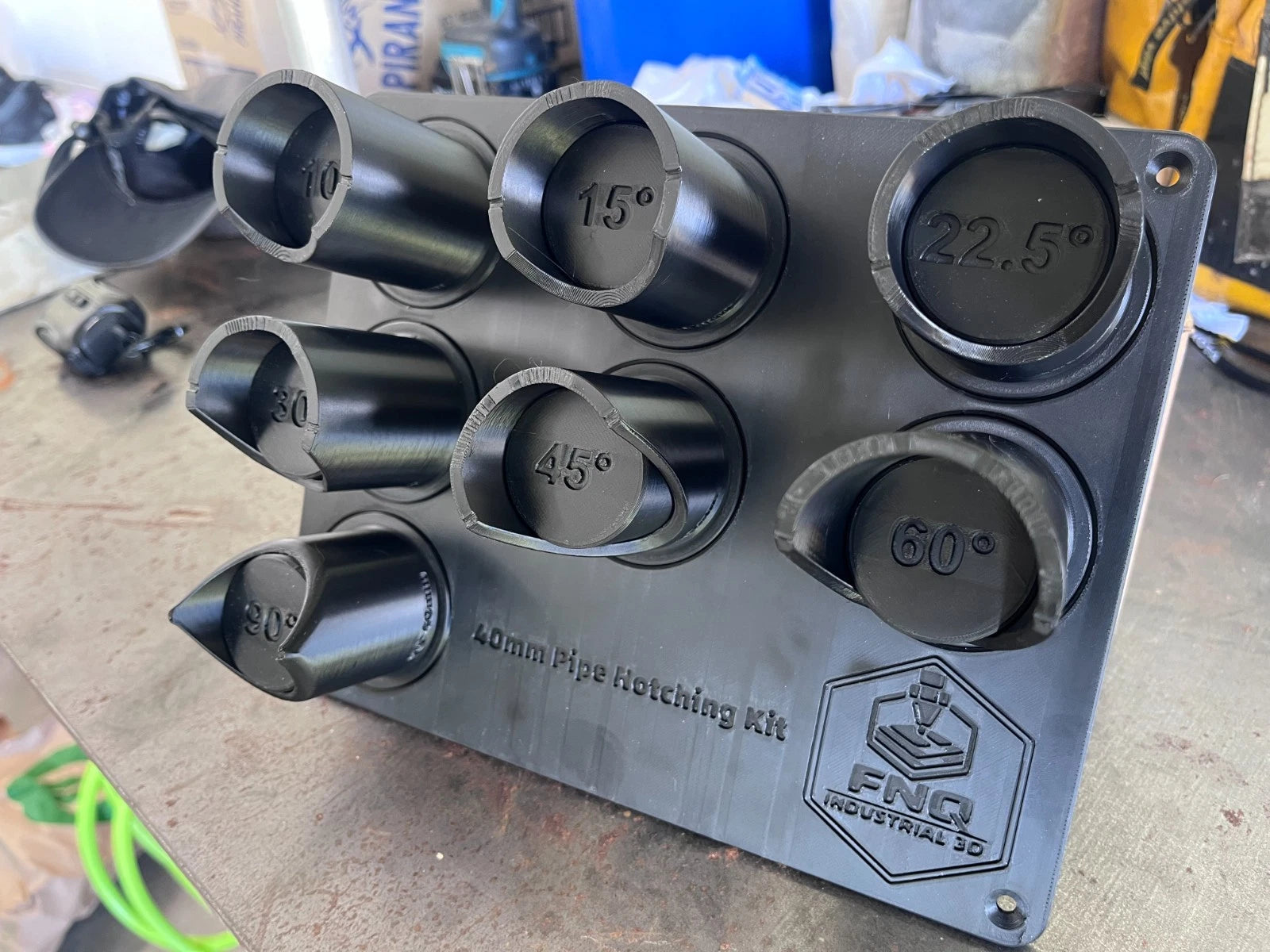

• 40mm Pipe Kit

Each kit is clearly marked for easy identification and workshop efficiency.

Included Angles

Pre-set angle guides for consistent layout and cutting:

• 10°
• 15°
• 22.5°
• 30°
• 45°
• 60°
• 90°

Designed for fast setup and repeatable accuracy.

Key Features

✔ Precision angle guides for consistent results

✔ Heavy-duty construction for workshop use

✔ Clear angle markings

✔ Fast and simple alignment

✔ Ideal for weld prep and fabrication work

✔ Suitable for steel, aluminium and other round tube

Applications

• Structural fabrication
• Handrail and balustrade construction
• Marine and boat work
• Roll cages and motorsport fabrication
• Custom frames and brackets
• DIY metal projects

Why Use a Pipe Notching Guide?

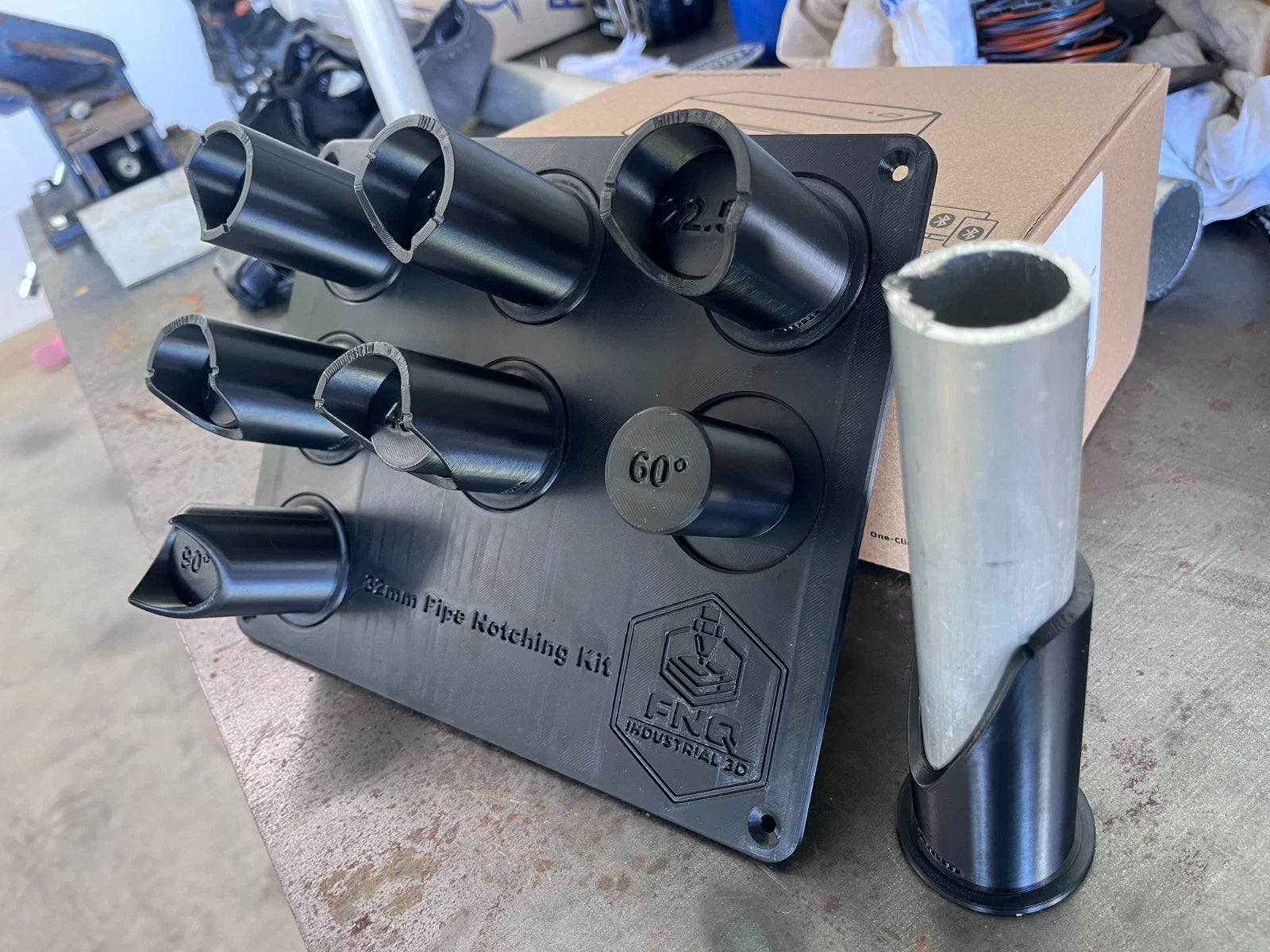

Accurate fit-up reduces weld gaps, improves joint strength and saves time on grinding and rework. This kit allows you to mark and prepare pipe ends quickly and consistently.

About FNQ Industrial 3D

FNQ Industrial 3D specialises in engineering-focused 3D printed components for marine, agricultural, and industrial applications. All products are designed with function, strength, and longevity as the priority.

Photos

Images show the actual product you will receive. Minor layer lines are a normal characteristic of industrial 3D printing and do not affect performance or strength.

Fast dispatch from Australia.
If you have any questions or need bulk quantities, feel free to message.
